Tyre Temperature Monitoring System

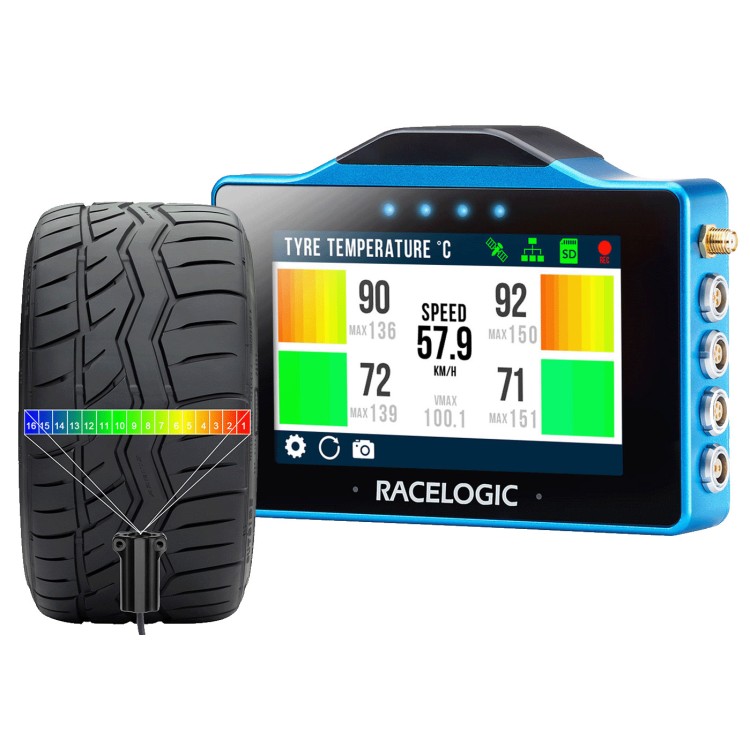

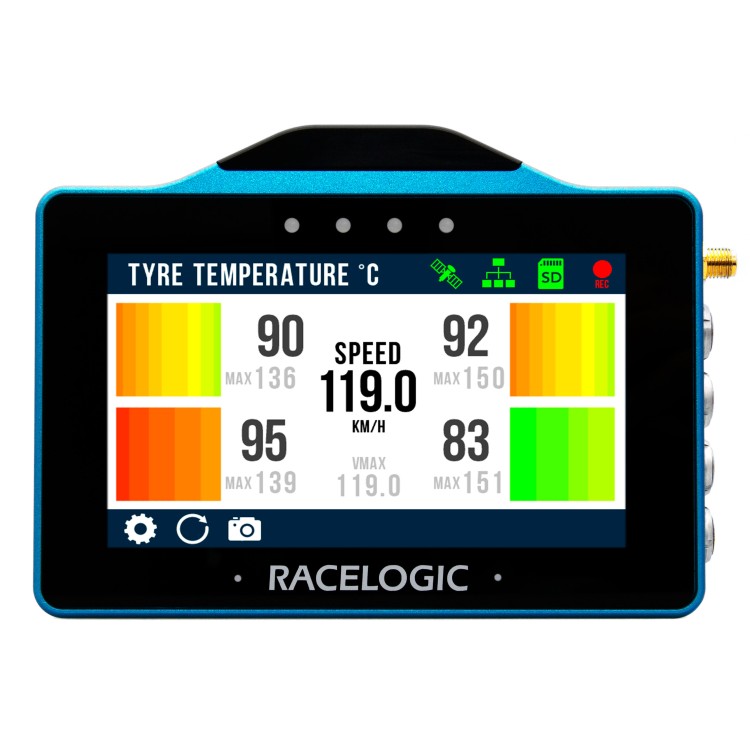

The VBOX Tyre Temperature Monitoring System has been specifically designed to measure, log and display surface temperature of a tyre, providing invaluable information to the driver whilst on track. The display offers a visual representation of the whole surface temperature for all four tyres via 64 individual heat maps, as well as live temperature and maximum temperature values.

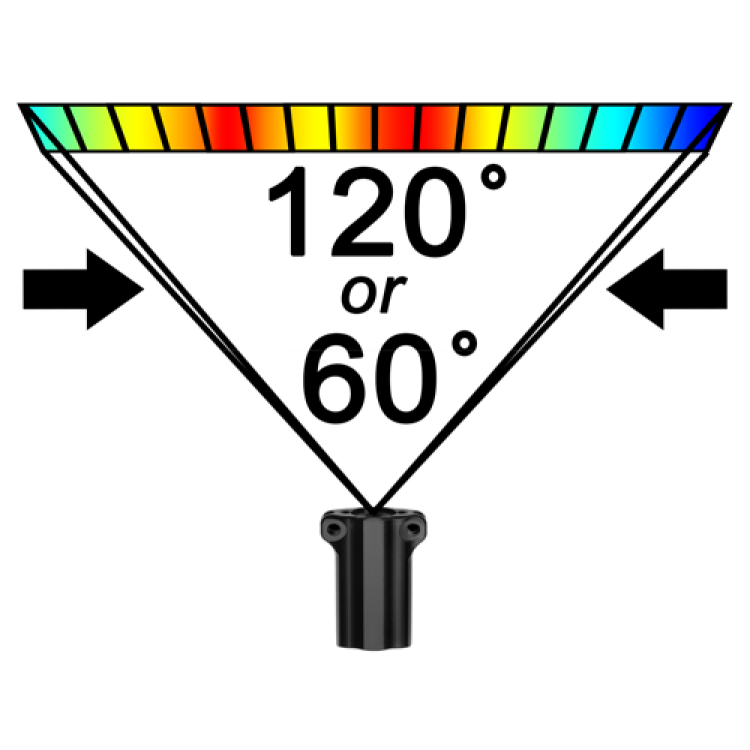

Each sensor has a field of view of 120° and can measure up to 16 temperature points on an object with surface temperatures ranging from -20° C to 300° C. Please see the data sheet and configuration guide for more information.

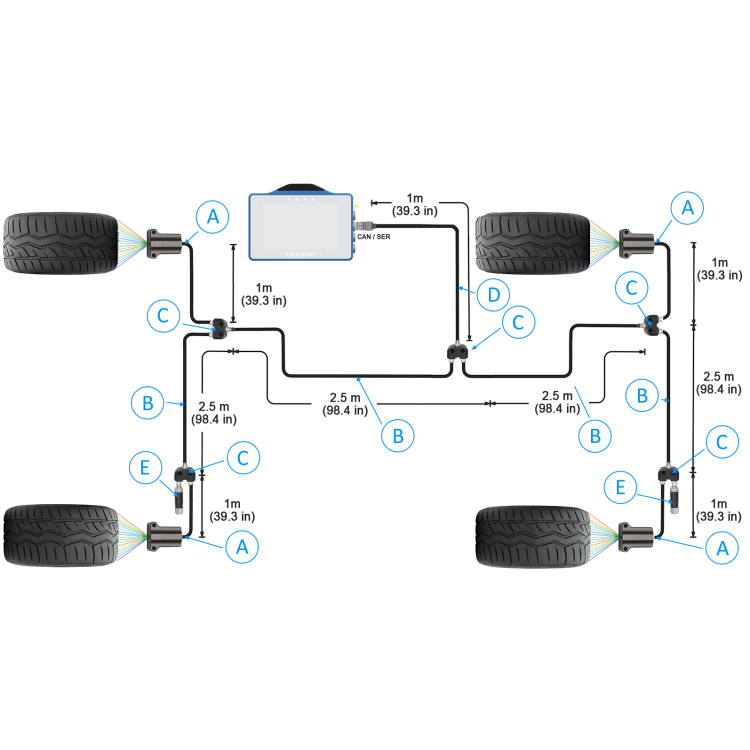

Please note, that a CAN Gateway is required to log data from the tyre temperature sensors and a vehicle CAN bus at the same time. If you have any questions, please email vbox@racelogic.co.uk.

Porsche Carrera Cup GB evaluated tyre performance at a high degradation circuit using the VBOX Tyre Temperature Monitoring System working alongside Michelin to provide safe parameters to the competitors.
