Brake Temperature Monitoring System

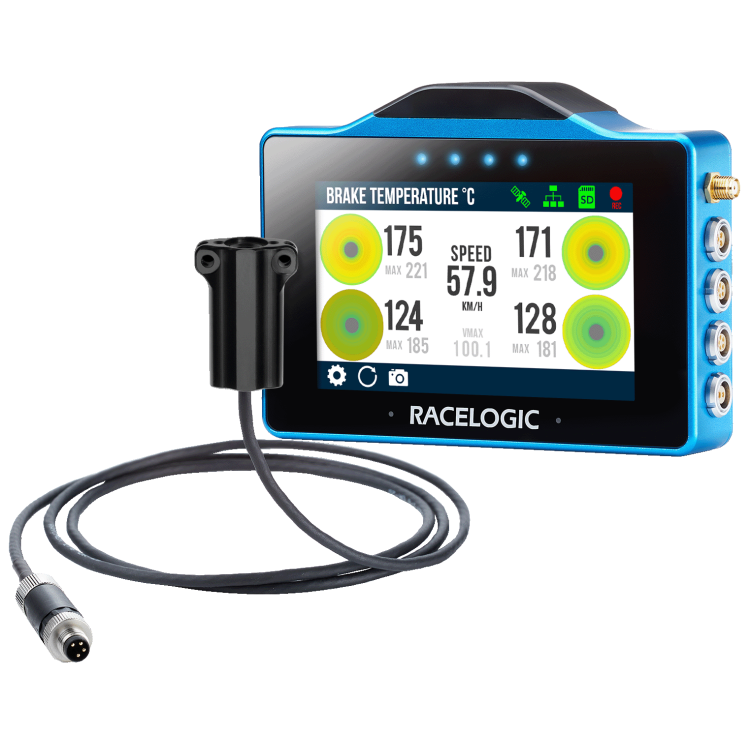

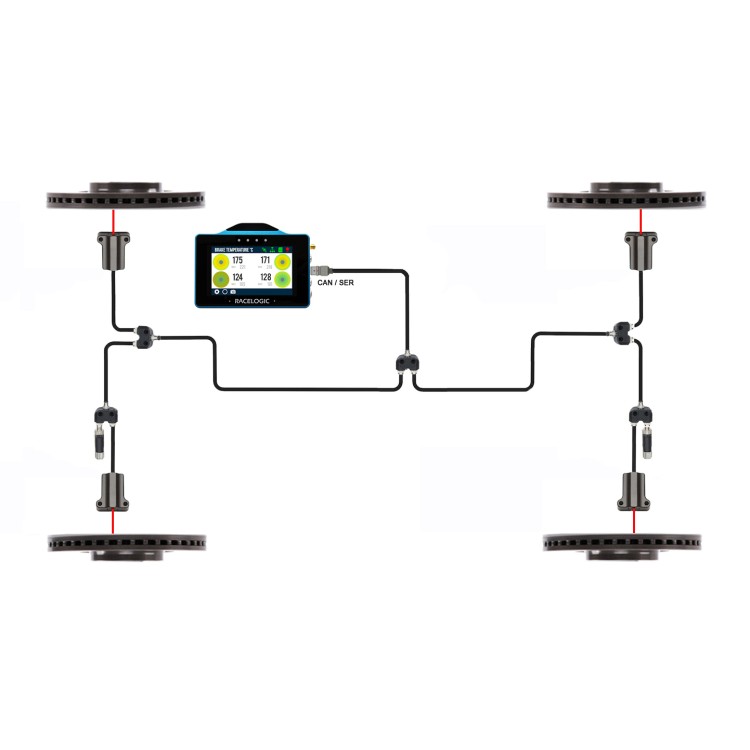

Measure, log and monitor the surface temperature for all four brake disks on a daylight readable 4.3" colour display. The brake temperature monitoring app will show a heat map for each sensor, live temperature and maximum temperature values.

Each sensor is enclosed in a compact IP66 rated aluminium housing and can measure temperature at 16, 8, and 4 points, at a sampling frequency of up to 100 Hz and an object temperature of between -20 to 1100˚C. Please see the data sheet and sensor specs for more information.

Please note, that a CAN Gateway is required to log data from the brake temperature sensors and a vehicle CAN bus at the same time. If you have any questions, please email vbox@racelogic.co.uk.
